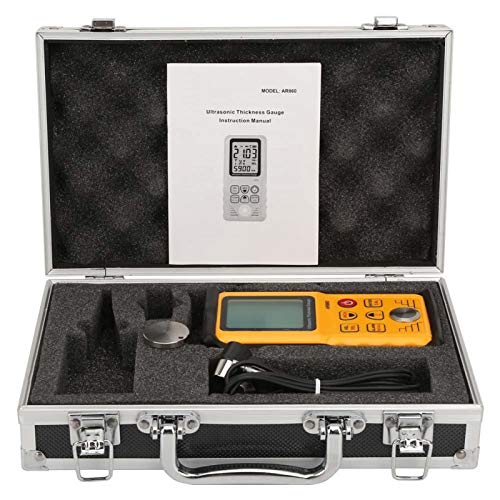

Oumefar Digital Ultrasonic Thickness Gauge Meter - 1.0-300.0mm Measuring Range for Steel, Metal, Glass & Plastic - Portable LCD Display with Data Storage - Includes Protective Storage Box | Ideal for Industrial Quality Control, Construction & Manufacturing Inspections
Free shipping on all orders over $50
7-15 days international
12 people viewing this product right now!
30-day free returns
Secure checkout
58694251
Description
Ultrasonic Thickness Gauge is an intelligent handheld product, which adopts ultrasonic measuring principle, and is controlled by micro processor, provides quick and precise measurement of thickness for most of industrial material. This instrument is suitable for measuring materials that are good ultrasonic conductor such as metal, plastic, ceramic, glass etc. Features: 1. Auto calibration to assure the accuracy 2. Sound velocity measurement: with a given thickness to measure the sound velocity to improve accuracy 3.12 sound velocities for different material 4. Coupling status indication 5. 12 thickness measurement data store and recall 6. Thickness alarm setup 7. Back light function 8. Low battery indication 9. Auto power off Specification: Brand: SMART SENSOR Model: AR860 Transducer: dia 6 mm 5MHZ / dia 10mm 5MHZ Measurement Range: 1.0-300.0mm (Steel) Accuracy: ±(1%H±0.1mm) Sound velocity:1000~9999m/s Minimum limit for tube measuring: dia 15*2mm(steel)(dia 6) / dia 20*3mm(steel)(dia 10) Thickness data storage: 12 groups Sound Velocity Measuring & Storage: 12 groups Power supply: 3 x 1.5V AAA battery (NOT included) Size: 153*75*35mm / 6.02*2.95*1.38in Package Weight: 1004g (approx.) Package List: 1 * Ultrasonic Thickness Gauge 1 * User Manual 1 * Storage Box 1 * Calibration Block 2 * Probes
Features
【PRODUCT PARAMETERS】:Transducer: dia 6 mm 5MHZ / dia 10mm 5MHZ. Measurement Range: 1.0-300.0mm (Steel). Accuracy: ±(1%H±0.1mm). Minimum limit for tube measuring: dia 15*2mm(steel)(dia 6) / dia 20*3mm(steel)(dia 10). Size: 153*75*35mm / 6.02*2.95*1.38in
【PRODUCT DESCRIPTION】:When the ultrasonic pulse emitted by the probe reaches the material interface through the measured object, the pulse is reflected back to the probe, and the thickness of the material is determined by measuring the propagation time
【MULTI-FUNCTION】:This ultrasonic thickness gauge has the functions of automatic zero point calibration, double protection, and highly sensitive probe. Automatic calibration and compensation, using computer software to correct the probe's nonlinear error within the scope. The shockproof sheath is made of high-quality TPU injection molding
【PRODUCT FEATURES】:This digital thickness tester has the function of sound velocity measurement: with a given thickness to measure the sound velocity to improve accuracy. It has auto calibration to assure the accuracy
【WIDE APPLICATION】:This thickness gauge tester is preset with a variety of fixed sound speeds, which can measure the thickness of steel, iron, copper, zinc, aluminum-lead, glass, plastic, PVC, acrylic and other materials, and adjust it to the corresponding material after turning on it
